    8698962R001
    В избранное

    8698962R001

    Бренд: Agilent Technologies

    Запросить цену
    Part Number 8698962R001

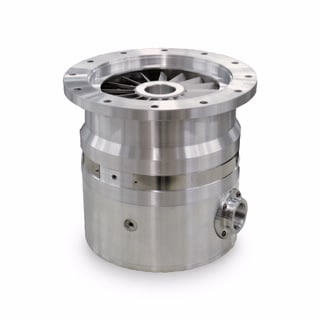

    Description Turbo-V 1K-G pump, DN 200 ISO-F inlet flange, KF40 foreline flange
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!— "inside defaultSpecification":{Ambient Operating Temperature=+5 to +35 °C, Ambient Storage Temperature=-20 to +70 °C, Base Pressure=<1 x 10-10 mbar, Compression Ratio H2=1.5 x 104, Compression Ratio He=>4 x 104, Compression Ratio N2=>5 x 107, Flange Type=ISO 200 F, Foreline Flange Size=KF 40 NW, Pumping Speed — Ar=1040 L/s (ISO 200), Pumping Speed — H2=730 L/s (ISO 200), Pumping Speed — He=1150 L/s (ISO 200), Pumping Speed — N2=1080 L/s (ISO 200), Standards and Certifications=UNI EN 292-1
    UNI EN 292-2
    EN 55011Cl. A
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61010-1
    EN 1012-2, Weight=26.8 kg}—>

    <!—

    —>

    Ambient Operating Temperature
    • +5 to +35 °C
    Ambient Storage Temperature
    • -20 to +70 °C
    Base Pressure
    • <1 x 10-10 mbar

      • <!— Base Pressure::<1 x 10-10 mbar —>

    Compression Ratio H2
    • 1.5 x 104

      • <!— Compression Ratio H2::1.5 x 104 —>

    Compression Ratio He
    • >4 x 104
    Compression Ratio N2
    • >5 x 107
    Flange Type
    • ISO 200 F
    Foreline Flange Size
    • KF 40 NW
    Pumping Speed — Ar
    • 1040 L/s (ISO 200)
    Pumping Speed — H2
    • 730 L/s (ISO 200)
    Pumping Speed — He
    • 1150 L/s (ISO 200)
    Pumping Speed — N2
    • 1080 L/s (ISO 200)
    Standards and Certifications
    • UNI EN 292-1
      UNI EN 292-2
      EN 55011Cl. A
      EN 61000-4-2
      EN 61000-4-3
      EN 61000-4-4
      EN 61000-4-5
      EN 61010-1
      EN 1012-2

      • <!— Standards and Certifications::UNI EN 292-1
      UNI EN 292-2
      EN 55011Cl. A
      EN 61000-4-2
      EN 61000-4-3
      EN 61000-4-4
      EN 61000-4-5
      EN 61010-1
      EN 1012-2 —>

    Weight
    • 26.8 kg
