Flash Spherical AQ C18, Spherical; 40-60µm; 100A; 20g/branch; Hydrophilic C18, 20/Pk

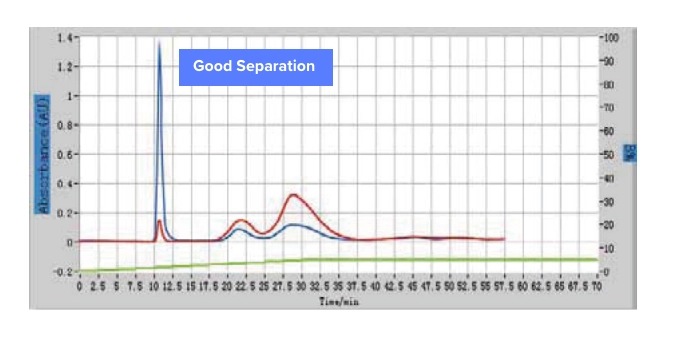

Good Separation

The CLARICEP Spherical AQ C18 column is a hydrophilic C18 reversed phase for the flash chromatography applications. It offers good separation performance for hydrophilic to hydrophobic compounds: polar, semi-polar, and non-polar.

Flash Conditions

Column: Claricep Spherical AQ C18 ( 20-35 μm, 100 Å)

Mobile Phase: Methanol/ Water/Formic Acid

Flow Rate: 26 mL/min

Detector: UV @ 231/214 nm

Sample: Iridoids Compounds

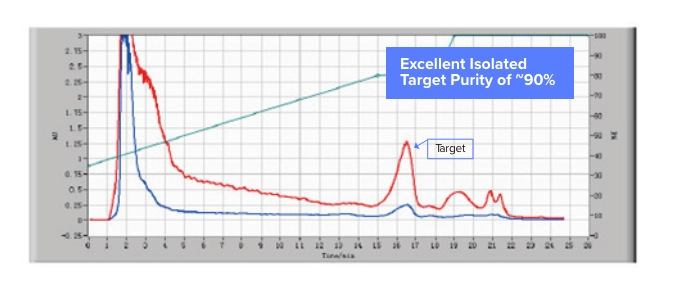

Sample Separation: Purification of Taxol with AQ C18

The sample is an extract of Chinese yew. The target is taxol. Dissolve 1 g of sample in 20 mL methanol and filter to give a solution with a Taxol concentration of 50 mg/mL.Concentrate the solution by evaporation rotating at 40°C, centrifuge and dissolve the supernatant into methanol, to give a final volume of 11 mL. Filter and load onto the column.

Flash Conditions

Column: Claricep Spherical AQ C18 (20-35 μm, 100 Å, 120 g)
Part No.: SQ230120-0
Mobile Phase: A: Water B: Methanol
Gradient: Time (min) 0 15 18 19 25	% B 35 80 80 100 100
Flow Rate: 83 mL/min
Detector: UV @ 230/54 nm
Sample Loading: A: Water B: Methanol

CLARICEP Spherical AQ C18 Screw-on Columns

The Screw-on series of Flash columns are a new feature that allows the user to load a solid phase, viscous phase, or simply open the cap for a more user friendly analysis.

Which Screw-on Series should I order ?

CLARICEP i-Series

The i-Series features a managed column head space with a secured screw-on lid. This new design allows either loading of liquid samples directly onto the column head or loading of impregnated solid sample directly into the space. Users will benefit from:

• Choice of loading method based on sample properties
• Narrow band for liquid samples because of wide loading area
• Dry-loading of solid impregnated samples minimizes band broadening
• Customized loading method upon user preference

Ordering Information

Part Number starts with “SN”. As an example, to order SQ230120-0 in
i-series, Part Number to order is SN-SQ230120-0

CLARICEP c-Series

The c-Series shares the same design, but the column outlet does not have a luer lock structure, this simplifies tubing connection across various flash systems.

Compatible with instruments from the following:

• Agela Technologies
• Buchi
• Grace
• Interchim
• Other brands

Ordering Information

Part Number starts with “C”. As an example, to order SQ230120-0 in
c-series, Part Number to order is C-SQ230120-0

CLARICEP s-Series

The s-Series columns are fully packed without a head void. In addition, the Luer lock fittings for both inlet and outlet allows easy operation of tandem columns or the coupling of a loading cartridge.

Compatible with instruments from the following:

• Biotage

Ordering Information

Part Number starts with “S”. As an example, to order SQ230120-0 in
s-series, Part Number to order is S-SQ230120-0

Количество товара Flash Spherical AQ C18, Spherical; 40-60µm; 100A; 20g/branch; Hydrophilic C18, 20/Pk

В корзину

Артикул: SQ240020-0 Категория: Запасные части и расходные материалы Бренд: Phenomenex
