i-Series

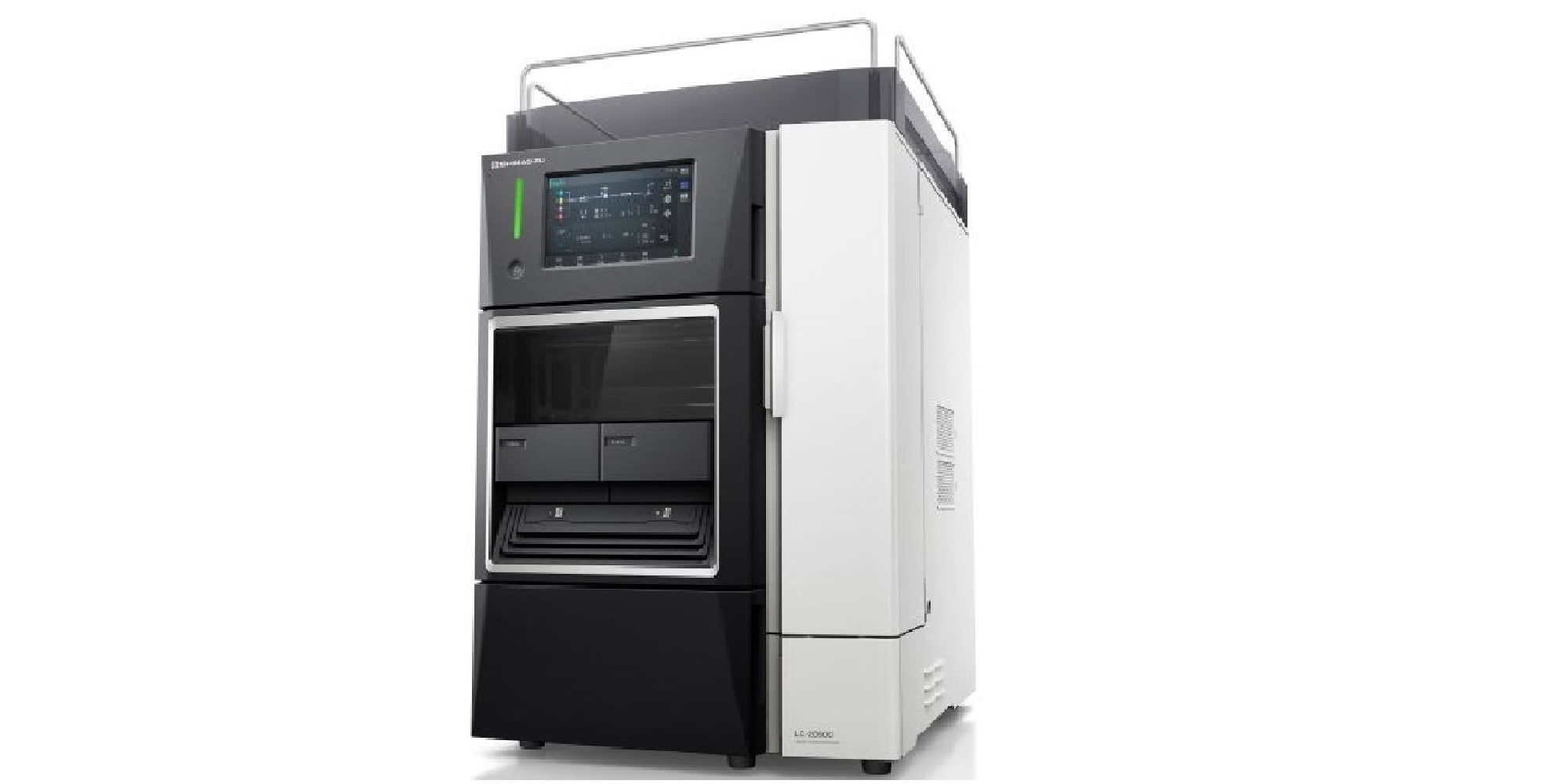

LC-2070 Series

Model		LC-2070 ( UV model without sample cooler )	LC-2070C (UV model)	LC-2070C 3D (PDA model)
P/N		228-65880-58	228-65881-58	228-65882-58
Dimensions		1 to 13
Weight		58 kg	63 kg
Available pH range		W410 × H605 × D500 mm (Not including reservoir tray height)
Pump	Degassing unit	Five Lines: Mobile phase 4 + Rinse solution 1 (Volume 400 mμL)
	Flow rate setting range	0.0001 to 10 mL/min
	Configuration	Four-solvent low-pressure gradient

	Gradient/range of set concentrations	0 to 100%, in 0.1% steps
	Maximum pressure	50 MPa (0.0001 to 3 mL/min) 44 MPa (3.0001 to 5 mL/min) 22 MPa (5.0001 to 10 mL/min)
	System Delay Volume	650 μL (Option: 460 μL, 1100 μL)
Autosampler	Injection method	Total-volume sample injection
	Injection volume accuracy	±1% (50 L, N = 10)
	Injection volume setting range	0.1 to 100 μL (Option: 0.1 to 50 μL, 1 to 500 μL, 1 to 2,000 μL)
	Injection volume reproducibility	RSD < 0.20% (5.0−2000 L) RSD < 0.25% (2.0−4.9 L) RSD < 0.5% (1.0−1.9 L) RSD < 1.0% (0.5−0.9 L)
	Sample cooler	Not included	4 to 45 °C
Detector		UV	UV	PDA

Model		LC-2080C (UV model)	LC-2080C 3D (PDA model)
P/N		228-65883-58	228-65884-58
Dimensions		1 to 13
Weight		63 kg
Available pH range		W410 × H605 × D500 mm (Not including reservoir tray height)
Pump	Degassing unit	Five Lines: Mobile phase 4 + Rinse solution 1 (Volume 400 mμL)
	Flow rate setting range	0.0001 to 10 mL/min
	Configuration	Four-solvent low-pressure gradient

	Gradient/range of set concentrations	0 to 100%, in 0.1% steps
	Maximum pressure	70 MPa (0.0001 to 3 mL/min) 44 MPa (3.0001 to 5 mL/min) 22 MPa (5.0001 to 10 mL/min)
	System Delay Volume	460 μL (Option: 650 μL, 1100 μL)
Autosampler	Injection method	Total-volume sample injection
	Injection volume accuracy	±1% (50 L, N = 10)
	Injection volume setting range	0.1 to 50 μL (Option: 0.1 to 100 μL, 1 to 500 μL, 1 to 2,000 μL)
	Injection volume reproducibility	RSD < 0.20% (5.0−2000 L) RSD < 0.25% (2.0−4.9 L) RSD < 0.5% (1.0−1.9 L) RSD < 1.0% (0.5−0.9 L)
	Sample cooler	4 to 45 °C
Detector		UV	PDA
