    X3752-64018
    В избранное

    X3752-64018

    Бренд: Agilent Technologies

    Запросить цену
    Part Number X3752-64018

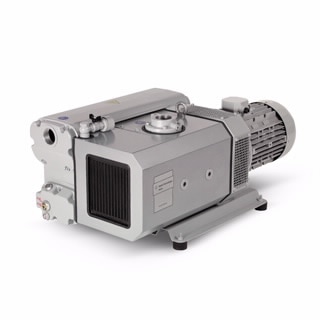

    Description MS-301 high capacity rotary vane pump, 170 cfm free air displacement at 50 Hz, 5.5k W, 50 Hz, 400/690 V, 2 in gas inlet, oil charge not included
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=550 mm x 460 mm x 986 mm, Exhaust Connection=2 inch gas, Free Air Displacement=170 cfm, Height=460 mm, Inlet Connection=2 inch gas, Input Voltage=Δ400/Y690V, 50Hz, Length=986 mm, Motor Rating — 3 Phase=5.5 kW, Noise Level=72 at 50Hz dB(A), Oil Capacity Min/Max=7 L, Pumping Speed (50 Hz)|MultiLine=150 cfm|250 m^3/h|, Rotational Speed at 50Hz=1450 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=5000 g/h, Water Vapour Tolerance=30 mbar, Weight=188 kg, Width=550 mm}—>

    <!—

    —>

    Dimensions (WxHxL)
    • 550 mm x 460 mm x 986 mm
    Exhaust Connection
    • 2 inch gas
    Free Air Displacement
    • 170 cfm
    Height
    • 460 mm
    Inlet Connection
    • 2 inch gas
    Input Voltage
    • Δ400/Y690V, 50Hz
    Length
    • 986 mm
    Motor Rating — 3 Phase
    • 5.5 kW
    Noise Level
    • 72 at 50Hz dB(A)
    Oil Capacity Min/Max
    • 7 L
    Pumping Speed (50 Hz)

    • <!— "multilineKeyVal pipe value":150 cfm

    • 250 m^3/h
    • —>
      150 cfm
    • 250 m^3/h
    Rotational Speed at 50Hz
    • 1450 rpm
    UNSPSC Code
    • 40151502
    Ultimate Partial Pressure
    • ≤8∙10-2 mbar

      • <!— Ultimate Partial Pressure::≤8∙10-2 mbar —>

    Ultimate Total Pressure with Gas Ballast
    • ≤0.5 mbar
    Water Vapour Pumping Capacity
    • 5000 g/h
    Water Vapour Tolerance
    • 30 mbar
    Weight
    • 188 kg
    Width
    • 550 mm
