    X3753-64075
    В избранное

    X3753-64075

    Бренд: Agilent Technologies

    Запросить цену
    Part Number X3753-64075

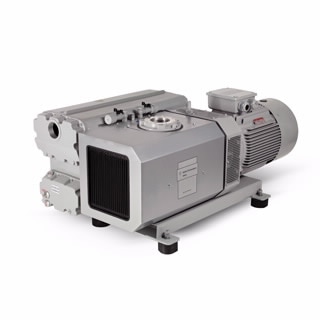

    Description MS-631 high capacity rotary vane pump, 465 cfm free air displacement at 60 Hz, 15 kW, 400/690V at 50 Hz, 460 V at 60 Hz, 4 in gas inlet, oil charge not included
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=823 mm x 683 mm x 1455 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=683 mm, Inlet Connection=4 inch gas, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1455 mm, Motor Rating — 3 Phase=15 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=582 kg, Width=823 mm}—>

    <!—

    —>

    Dimensions (WxHxL)
    • 823 mm x 683 mm x 1455 mm
    Exhaust Connection
    • 3 inch gas
    Free Air Displacement
    • 390 cfm
    Height
    • 683 mm
    Inlet Connection
    • 4 inch gas
    Input Voltage

    • <!— "multilineKeyVal pipe value":Δ400/Y690V, 50Hz

    • Δ460V, 60Hz
    • —>
      Δ400/Y690V, 50Hz
    • Δ460V, 60Hz
    Length
    • 1455 mm
    Motor Rating — 3 Phase
    • 15 kW
    Noise Level
    • 71 dB(A)
    Oil Capacity Min/Max
    • 22 L
    Rotational Speed at 50Hz
    • 1000 rpm
    UNSPSC Code
    • 40151502
    Ultimate Partial Pressure
    • ≤8∙10-2 mbar

      • <!— Ultimate Partial Pressure::≤8∙10-2 mbar —>

    Ultimate Total Pressure with Gas Ballast
    • ≤0.5 mbar
    Water Vapour Pumping Capacity
    • 20000 g/h
    Water Vapour Tolerance
    • 30 mbar
    Weight
    • 582 kg
    Width
    • 823 mm
