    X3753-64077
    В избранное

    X3753-64077

    Бренд: Agilent Technologies

    Запросить цену
    Part Number X3753-64077

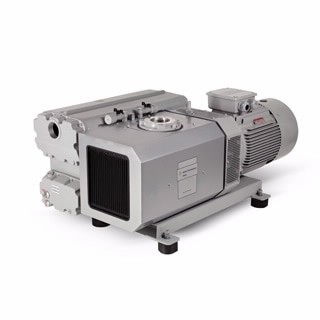

    Description MS-631 high capacity rotary vane pump, 465 cfm free air displacement at 60 Hz, 18.5 kW, 60 Hz, 230/460 V, 4 in NPT inlet, oil charge not included
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=32.4 in x 26.9 in x 57.3 in, Exhaust Connection=3 inch NPT, Free Air Displacement=465 cfm, Height=26.9 in, Inlet Connection=4 inch NPT, Input Voltage=YY230/Y460V, 60Hz, Length=57.3 in, Motor Rating — 3 Phase=18.5 kW, Noise Level=73 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1200 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=30000 g/h, Water Vapour Tolerance=40 mbar, Weight=1349 lb, Width=32.4 in}—>

    <!—

    —>

    Dimensions (WxHxL)
    • 32.4 in x 26.9 in x 57.3 in
    Exhaust Connection
    • 3 inch NPT
    Free Air Displacement
    • 465 cfm
    Height
    • 26.9 in
    Inlet Connection
    • 4 inch NPT
    Input Voltage
    • YY230/Y460V, 60Hz
    Length
    • 57.3 in
    Motor Rating — 3 Phase
    • 18.5 kW
    Noise Level
    • 73 dB(A)
    Oil Capacity Min/Max
    • 22 L
    Pumping Speed (60 Hz)

    • <!— "multilineKeyVal pipe value":400 cfm

    • 680 m3/h
    • —>
      400 cfm
    • 680 m3/h
    Rotational Speed at 50Hz
    • 1200 rpm
    UNSPSC Code
    • 40151502
    Ultimate Partial Pressure
    • ≤8∙10-2 mbar

      • <!— Ultimate Partial Pressure::≤8∙10-2 mbar —>

    Ultimate Total Pressure with Gas Ballast
    • ≤0.5 mbar
    Water Vapour Pumping Capacity
    • 30000 g/h
    Water Vapour Tolerance
    • 40 mbar
    Weight
    • 1349 lb
    Width
    • 32.4 in
