    X3753-64091
    В избранное

    X3753-64091

    Бренд: Agilent Technologies

    Запросить цену
    Part Number X3753-64091

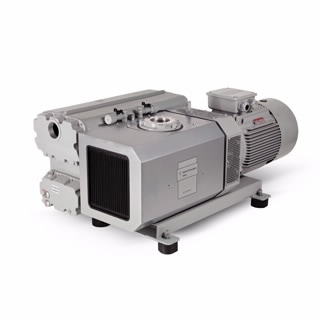

    Description MS-631FL high capacity rotary vane pump, frameless version can be directly coupled to a roots pump, 465 cfm free air displacement at 60 Hz, 18.5 kW, 400/690V at 50Hz, 460V at 60Hz, DN150 DIN2533, thermal protection switch, exhaust filter control pressure switch, oil level protection switch
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!— "inside defaultSpecification":{Dimensions (WxHxL)=973 mm x 740 mm x 1436 mm, Exhaust Connection=3 inch gas, Free Air Displacement=390 cfm, Height=740 mm, Inlet Connection=DN150 DIN2533, Input Voltage|MultiLine=Δ400/Y690V, 50Hz|Δ460V, 60Hz|, Length=1436 mm, Motor Rating — 3 Phase=18.5 kW, Noise Level=71 dB(A), Oil Capacity Min/Max=22 L, Pumping Speed (50 Hz)|MultiLine=350 cfm|590 m^3/h|, Pumping Speed (60 Hz)|MultiLine=400 cfm|680 m3/h|, Rotational Speed at 50Hz=1000 rpm, UNSPSC Code=40151502, Ultimate Partial Pressure=≤8∙10-2 mbar, Ultimate Total Pressure with Gas Ballast=≤0.5 mbar, Water Vapour Pumping Capacity=20000 g/h, Water Vapour Tolerance=30 mbar, Weight=612 kg, Width=973 mm}—>

    <!—

    —>

    Dimensions (WxHxL)
    • 973 mm x 740 mm x 1436 mm
    Exhaust Connection
    • 3 inch gas
    Free Air Displacement
    • 390 cfm
    Height
    • 740 mm
    Inlet Connection
    • DN150 DIN2533
    Input Voltage

    • <!— "multilineKeyVal pipe value":Δ400/Y690V, 50Hz

    • Δ460V, 60Hz
    • —>
      Δ400/Y690V, 50Hz
    • Δ460V, 60Hz
    Length
    • 1436 mm
    Motor Rating — 3 Phase
    • 18.5 kW
    Noise Level
    • 71 dB(A)
    Oil Capacity Min/Max
    • 22 L
    Pumping Speed (50 Hz)

    • <!— "multilineKeyVal pipe value":350 cfm

    • 590 m^3/h
    • —>
      350 cfm
    • 590 m^3/h
    Pumping Speed (60 Hz)

    • <!— "multilineKeyVal pipe value":400 cfm

    • 680 m3/h
    • —>
      400 cfm
    • 680 m3/h
    Rotational Speed at 50Hz
    • 1000 rpm
    UNSPSC Code
    • 40151502
    Ultimate Partial Pressure
    • ≤8∙10-2 mbar

      • <!— Ultimate Partial Pressure::≤8∙10-2 mbar —>

    Ultimate Total Pressure with Gas Ballast
    • ≤0.5 mbar
    Water Vapour Pumping Capacity
    • 20000 g/h
    Water Vapour Tolerance
    • 30 mbar
    Weight
    • 612 kg
    Width
    • 973 mm
