    X3845-64011
    В избранное

    X3845-64011

    Бренд: Agilent Technologies

    Запросить цену
    Part Number X3845-64011

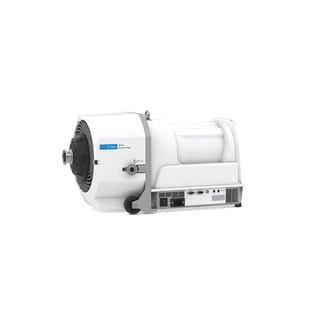

    Description IDP-45 dry scroll pump with VPI and gauge
    Unit 1 Each

    Specifications

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!— "inside defaultSpecification":{Base pressure (60 Hz) — Torr & mbar|MultiLine=1.07 x 10–2 mbar|8 x 10–3 Torr|, Dimensions (WxHxL)=13.6 in x 14 in x 25.8 in, Exhaust Connection=NW25, Height=14 in, Included Optional Feature|MultiLine=Gauge|VPI Valve|, Inlet Connection=NW40, Input Voltage|MultiLine=1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum|1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum |, Length=25.8 in, Noise Level=59+/- 2 dBA at 60 Hz, Pumping Speed (60 Hz)|MultiLine=26.48 CFM|45 m3/h|750 L/min|, Width=13.6 in}—>

    <!—

    —>

    Base pressure (60 Hz) — Torr & mbar

    <!— "inside MultiLine 1 value":1.07 x 10–2 mbar|8 x 10–3 Torr|—>

    • <!— "multilineKeyVal pipe value":1.07 x 10–2 mbar

    • 8 x 10–3 Torr
    • —>
      1.07 x 10–2 mbar
    • 8 x 10–3 Torr
    • <!— Base pressure (60 Hz) — Torr & mbar|MultiLine::1.07 x 10–2 mbar|8 x 10–3 Torr| —>
    Dimensions (WxHxL)
    • 13.6 in x 14 in x 25.8 in
    Exhaust Connection
    • NW25
    Height
    • 14 in
    Included Optional Feature

    • <!— "multilineKeyVal pipe value":Gauge

    • VPI Valve
    • —>
      Gauge
    • VPI Valve
    Inlet Connection
    • NW40
    Input Voltage

    • <!— "multilineKeyVal pipe value":1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum

    • 1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum
    • —>
      1 phase/100 to 127 VAC 50/60 Hz, 19 A maximum
    • 1 phase/200 to 240 VAC 50/60 Hz, 13 A maximum
    Length
    • 25.8 in
    Noise Level
    • 59+/- 2 dBA at 60 Hz
    Pumping Speed (60 Hz)

    <!— "inside MultiLine 1 value":26.48 CFM|45 m3/h|750 L/min|—>

    • <!— "multilineKeyVal pipe value":26.48 CFM

    • 45 m3/h
    • 750 L/min
    • —>
      26.48 CFM
    • 45 m3/h
    • 750 L/min
    • <!— Pumping Speed (60 Hz)|MultiLine::26.48 CFM|45 m3/h|750 L/min| —>
    Width
    • 13.6 in
