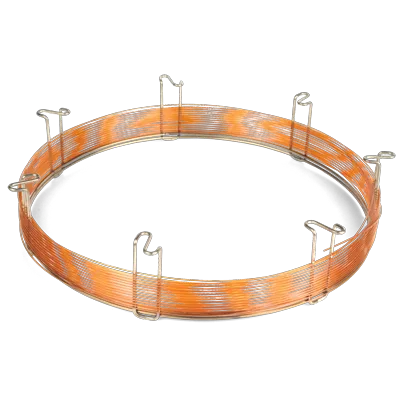

Zebron ZB-Drug-1, GC Cap. Column 15 m x 0.25 mm x 0.25 µm, Ea
Бренд: Phenomenex
Upgrade to Zebron from traditional phases used for drugs of abuse:
| Agilent® |
Restek® |
SGE® |
| DB®-1ms DB-5ms DB-35 |
Rtx®-1ms Rtx®-5 Rtx-5ms Rtx-35ms |
SPB®-1 |
Optimized Selectivity for Multiple Drug Classes
Traditional 5 % Phenyl Phase
| Column: |
As listed. |
| Dimension: |
10 meter x 0.18 mm x 0.18 µm |
| Injection: |
Split 10:1 @ 360 °C, 1 µL* |
| Carrier Gas: |
Helium @ 1.2 mL/min (constant flow) |
| Oven Program: |
140 °C to 320 °C @ 20 °C for 1 min |
| Detection: |
MSD @ 230 °C |
| Sample: |
Analytes @ 10 ppm BSTFA/Pyridine 1. Codeine-d6 2. Codeine 3. Morphine-d3 4. Morphine |
Zebron ZB-Drug-1
| Column: |
As listed. |
| Dimension: |
10 meter x 0.18 mm x 0.18 µm |
| Part No.: |
7CD-G023-08 |
| Injection: |
Split 10:1 @ 280 °C, 1 µL |
| Carrier Gas: |
Helium @ 55 cm/sec (constant flow) |
| Oven Program: |
180 °C to 340 °C @ 20 °C/min |
| Detection: |
MSD @ 230 °C |
| Sample: |
Analytes @ 10 ppm BSTFA/Pyridine 1. Codeine-d6 2. Codeine 3. Morphine-d3 4. Morphine |
Common Drug Screen by GC-MS
| Columns: |
Zebron ZB-Drug-1 |
| Dimension: |
10 meter x 0.18 mm x 0.18 μm |
| Part No.: |
7CD-G023-08 |
| Injection: |
Split 10:1 @ 260 °C,1 μL |
| Carrier Gas: |
Helium @ 1 mL/min (constant flow) |
| Oven Program: |
50 ºC to 150 ºC @ 15 ºC/min to 240 ºC @ 7 ºC/min to 320 ºC @ 25 ºC/min for 2 min |
| Detector: |
MSD @ 320 °C; 45-450 amu |
| Sample: |
Analytes are 25 ppm in Methanol 1. Acetophenone 2. Nicotine 3. Benzocaine 4. Ibuprofen 5. Allobarbital 6. Aprobarbital 7. Butalbital 8. Amobarbital 9. Phenacetin 10. Pentobarbital 11. Acetaminophen 12. Benzphetamine 13. Secobarbital 14. Phencyclidine 15. Meprobamate 16. Diphenhydramine 17. Lidocaine 18. Hexobarbital 19. Doxylamine 20. Glutethimide 21. Caffeine |
